Full Cloverleaf Interchange - 1360022c Cloverleaf The full cloverleaf interchange has four loop ramps for the left-turning traffic. The main highway is going to be build from the.
Highway Interchange Series Clover Interchange By Mce Ias Minecraft Project Minecraft Projects Minecraft Blueprints Minecraft Architecture
Interchanges with loops in all four quadrants are referred to as full cloverleafs and all others are referred to as partial cloverleafs.

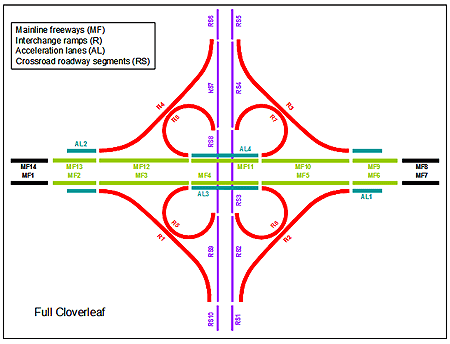

Full cloverleaf interchange. A cloverleaf interchange is the minimum design that can be used at the intersection of two fully controlled access facilities or where left turns at-grade are prohibited. 65 is shown horizontally. It replaces a crossing conflict with a merging followed some distance farther by a diverging conflict.
However weaving is a problem that may lead to a breakdown in traffic operation and more accidents. The cloverleaf design eliminates the need for traffic signals and keeps motorists moving. A 1999 study by the Virginia Department of Transportation found that cloverleaf interchanges begin to bog down when traffic surpasses 1000 vehicles per hour.
Cloverleaf Interchange The full clover interchange eliminates all crossing movement conflicts by the use of weaving sections. Since left-turning movements are handled by loop ramps cloverleafs avoid the safety problems that. 48-2I Full Cloverleaf Interchange 48-2J Partial Cloverleaf ParClo Interchange 48-2K Three-Leg Interchange 48-2L Fully Directional Interchange 48-2M Semi-Directional Interchange 48-3A Coordination of Lane Balance and Number of Lanes 48-3B Recommended Minimum Ramp Terminal Spacing.
Another disadvantage to this interchange is it can only serve a low capacity of traffic and because of this cloverleaf interchanges are typically found on older roads in rural areas. Traffic merges and weaves but does not cross at-grade. Although Full cloverleaf interchange provided free flow movement in all directions if needed it can easily be converted to a higher volume direction interchange.
A partial cloverleaf also known as a Parclo intercha nge is an interchange us ually involv ing four to six ramps t wo of which are loop ramps which connect to the non- highway. It was built in Woodbridge New Jersey in 1928. This weaving section is a critical element of cloverleaf design.
Unless the interchange is too congested no stopping is required. The figure shows guide signs for a full cloverleaf interchange of I-52 and US. The Full Cloverleaf The classic cloverleaf allows non-stop full access between two busy roads.
Outer ramps provide for the right turns. In this case a full cloverleaf interchange is the minimum design that can be used. I-52 is shown vertically and US.
A series of signs and sign assemblies are shown along the highways from the bottom to the top of the figure and from the left to the right. However full cloverleafs have deficiencies which need to be addressed before being chosen as the interchange type. The designer should consider collector-distributor roads in conjunction with cloverleaf interchanges to minimize weaving.
Traditional interchanges including the cloverleaf partial cloverleaf Parclo and the directional interchange require large right-of-ways and are costly and often difficult to construct in urban environments. Interchanges with loops in all four quadrants are referred to as full cloverleafs and all others are referred to as partial cloverleafs. A factor to consider when evaluating this interchange is the need for a large amount of land as this interchange takes up a lot of space.
A full Cloverleaf needs significant land to provide all free-flow movement as a result it is normally recommended in rural motorways to the motorway junction. The colloquial cloverleaf is the same as the more technical full cloverleaf as you can omit ramps to get a partial one. Where two access controlled highways intersect a full cloverleaf is the minimum type design interchange that provides connectivity for all movements between the highways.
Full Cloverleaf Interchange Layout CAD Template DWG April 17 2020 Off By cadengineer. Designed in Infraworks 360 AutoCAD Civil 3D and 3DS 3262016 Description This Project has been done by me to provide to all the users the best way to get to in this two new highways. At Capitol and 101 the number is.
Grade separation is considered at the intersections of major roadways to reduce congestion and increase capacity. This Project has been done by me to provide to all the users the best way to get to in this two new highways. Cloverleafs are four-leg interchanges that employ loop ramps to accommodate left-turning movements.
A full cloverleaf is the minimum type interchange for a freeway-to-freeway interchange. A cloverleaf interchange is adaptable in a rural environment where right-of-way is not prohibitive and weaving is minimal. Figure 4shows an example of a typical full cloverleaf interchange.
The cloverleaf was the first interchange design constructed in the United States.
